Clustering and k-means

Analyse de Données Master MIDS

Équipe EAD

LPSM Université Paris-Cité

2025-04-02

Clustering problems

In words

Clustering consists in partitioning points collections from some metric space

in such a way that

  • points within the same group are close enough

while

  • points from different groups are distant

Clustering in ML applications

Clustering shows up in many Machine Learning applications, for example:

  • Marketing: finding groups of customers with similar behavior given a large database of customer data containing their properties and past buying records

  • Biology: classification of plants and animals given their features

  • Bookshops: book ordering (recommendation)

  • Insurance: identifying groups of motor insurance policy holders with a high average claim cost; identifying frauds

  • City-planning: identifying groups of houses according to their type, value and geographical location

  • Internet: document classification; clustering weblog data to discover groups of similar access patterns; topic modeling

A clustering application relies on the elaboration of a metric/dissimilarity over some input space

This tasks is entangled with feature engineering

Focus on one specific context: market segmentation

  • Data: Base of customer data containing their properties and past buying records

  • Goal: Use the customers similarities to find groups

  • Possible directions:

    • Dimension reduction (PCA, CA, MCA, …)

    • Clustering \(\approx\) non-supervised classification

Dimension reduction

Dimension reduction technologies start form:

  • Training data \(\mathcal{D}=\{\vec{X}_1,\ldots,\vec{X}_n\} \in \mathcal{X}^n\) (i.i.d. \(\sim \Pr\))

  • Space \(\mathcal{X}\) of possibly high dimension.

and elaborate a Dimension Reduction Map

Dimension reduction technologies construct a map \(\Phi\) from the space \(\mathcal{X}\) into a space \(\mathcal{X}'\) of smaller dimension

Clustering techniques

Clustering techniques start from training data:

\[\mathcal{D}=\{\vec{X}_1,\ldots,\vec{X}_n\} \in \mathcal{X}^n\]

assuming \(\vec{X}_i \sim_{\text{i.i.d.}} \Pr\), and partition the data into (latent?) groups,

Clustering techniques construct a map \(f\) from \(\mathcal{D}\) to \(\{1,\ldots,K\}\) where \(K\) is a number of classes to be fixed: \(f: \quad \vec{X}_i \mapsto k_i\)

Dimension reduction and clustering may be combined

For example, it is commonplace to first perform PCA, project the data on the leading principal components and then perform \(k\)-means clustering on the projected data

Clustering tasks may be motivated along different directions:

  • The search for an interpretation of groups

  • Use of groups in further processing (prediction, …)

Good clustering

We need to define the quality of a cluster

Unfortunately, no obvious quality measure exists!

Clustering quality may be assessed by scrutinizing

  • Inner homogeneity: samples in the same group should be similar

  • Outer inhomogeneity: samples in two different groups should be different.

Shades of similarity

There are many possible definitions of similar and different

Often, they are based on the distance between the samples

Examples based on the (squared) Euclidean distance:

  • Inner homogeneity \(\approx\) intra class variance/inertia,

  • Outer inhomogeneity \(\approx\) inter class variance/inertia.

Remember that, in flat clustering, the choice of the number \(K\) of clusters is often delicate

Kleinberg’s theorem

  • Clustering is not a single method

  • Clustering methods address a large range of problems.

Definition Clustering function

Define a clustering function \(F\) as a function that

  • takes as input any finite domain \(\mathcal{X}\) with a dissimilarity function \(d\) over its pairs

and

  • returns a partition of \(\mathcal{X}\)

Desirable properties

A clustering function should ideally satisfy the next three properties

  1. Scale Invariance. For any domain set \(\mathcal{X}\), dissimilarity function \(d\), and any \(\alpha>0\), the following should hold: \(F(\mathcal{X},d) = F(\mathcal{X},\alpha d)\).

  2. Richness For any finite \(\mathcal{X}\) and every partition \(C = (C_1,\ldots,C_k)\) of \(\mathcal{X}\) (into nonempty subsets) there exists some dissimilarity function \(d\) over \(\mathcal{X}\) such that \(F(\mathcal{X},d)=C\).

  3. Consistency If \(d\) and \(d'\) are dissimilarity functions over \(\mathcal{X}\), such that for all \(x, y \in \mathcal{X}\),

    • if \(x,y\) belong to the same cluster in \(F(\mathcal{X},d)\) then \(d'(x,y) \leq d(x,y)\),
    • if \(x,y\) belong to different clusters in \(F(\mathcal{X},d)\) then \(d'(x,y) \geq d(x,y)\),

then \(F(\mathcal{X},d) = F(\mathcal{X},d')\).

Designing clustering functions meeting simultaneously any two of the three properties is doable

but

The three reasonable goals are conflicting

Kleinberg’s impossibility theorem

Theorem

No clustering function \(F\) satisfies simultaneously all three properties:

  • Scale Invariance,

  • Richness, and

  • Consistency

Flavors of clustering

Flat/Hierarchical and …

A wide variety of clustering methods have been used in Statistics and Machine Learning.

  • Flat clustering (for example \(k\)-means) partitions sample into a fixed number of classes (usually denoted by \(k\)). The partition is determined by some algorithm

.f6[The ultimate objective is to optimize some cost function. Whether the objective is achieved or even approximately achieved using a reasonable amount of computational resources is not settled]

  • Model based clustering is based on a generative model: data are assumed to be sampled from a specific model (usually finite mixtures of Gaussians, the model may or may not be parametric)

.f6[Clustering consists in fitting such a mixture model and then assigning sample points to mixture components]

  • Hierarchical clustering is the topic of next lesson

Carte du tendre

In Machine Learning, \(k\)-means and hierarchical clustering belong to a range of tasks called non-supervised learning

This contrasts with regression which belongs to the realm of supervised learning

k-means

The \(k\)-means algorithm is an iterative method that constructs a sequence of Voronoï partitions

A Voronoï diagram draws the nearest neighbor regions around a set of points.

Definition: Voronoï partitions

Assume:

  • sample \(X_1, \ldots, X_n\) from \(\mathbb{R}^p\)
  • \(\mathbb{R}^p\) is endowed with a metric \(d\), usually \(\ell_2\), sometimes a weighted \(\ell_2\) distance or \(\ell_1\)

Each cluster is defined by a centroid

The collection of centroids is (sometimes) called the codebook \(\mathcal{C}=c_1, \ldots, c_k\)

Each centroid \(c_j\) defines a class:

\[C_j = \bigg\{ X_i : d(X_i, c_j) = \min_{j' \leq k} d(X_i, c_{j'})\bigg\}\]

and more generally a Voronoï cell in \(\mathbb{R}^p\)

\[C_j = \bigg\{ x : x \in \mathbb{R}^p, d(x, c_j) = \min_{j' \leq k} d(x, c_{j'})\bigg\}\]

A Voronoï tesselation

Euclidean distance, dimension 2

A voronoi tesselation generated by \(100\) points picked at random on the gred \(\{1,\ldots, 200\}^2\)

Note that cell boundaries are line segments

Note that centroids may lie close to boundaries

The position of the centroid of a Voronoi cell depends on the positions of the centroids of the neighboring cells

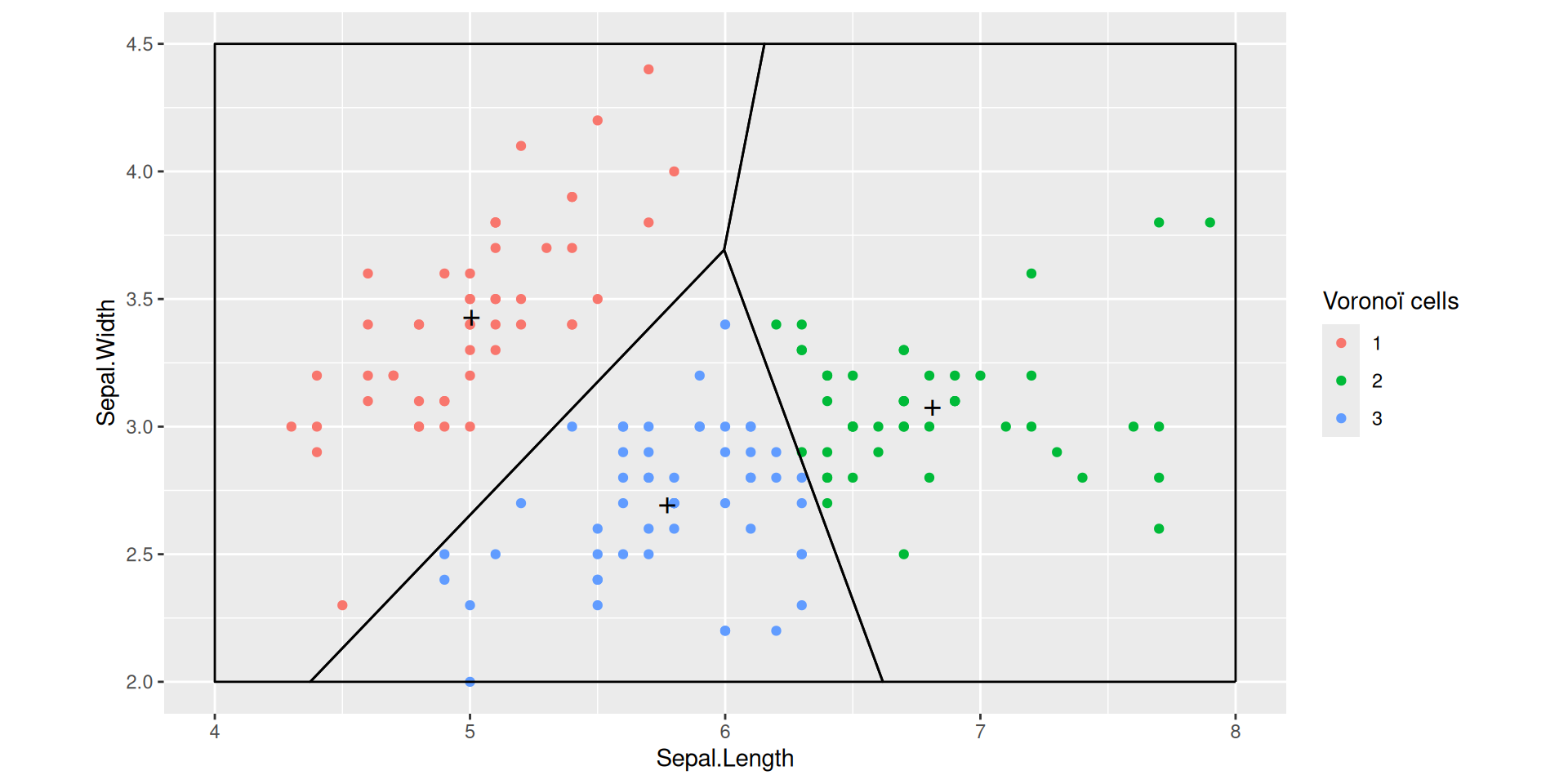

A Voronoi partition for projected Iris dataset

The black points marked with a cross define three centroids.

The straight lines delimit the Voronoï cells defined by the three centroids.

The colored points come from the Iris dataset: each point is colored according to the the cell it belongs to.

Adding centroids

k-means objective function

The \(k\)-means algorithm aims at building a codebook \(\mathcal{C}\) that minimizes

\(\mathcal{C} \mapsto \sum_{i=1}^n \min_{c \in \mathcal{C}} \norm X_i - c \norm_2^2\)

over all codebooks with given cardinality

If \(c \in \mathcal{C}\) is the closest centroid to \(X \in \mathbb{R}^p\),

\[\|c - X\|^2\]

is the quantization/reconstruction error suffered when using codebook \(\mathcal{C}\) to approximate \(X\)

If there are no restrictions on the dimension of the input space, on the number of centroids, or on sample size, computing an optimal codebook is a \(\text{NP}\) -hard problem

\(k\) -means at work

We may figure out what an optimized Voronoï partition looks like on the Iris dataset

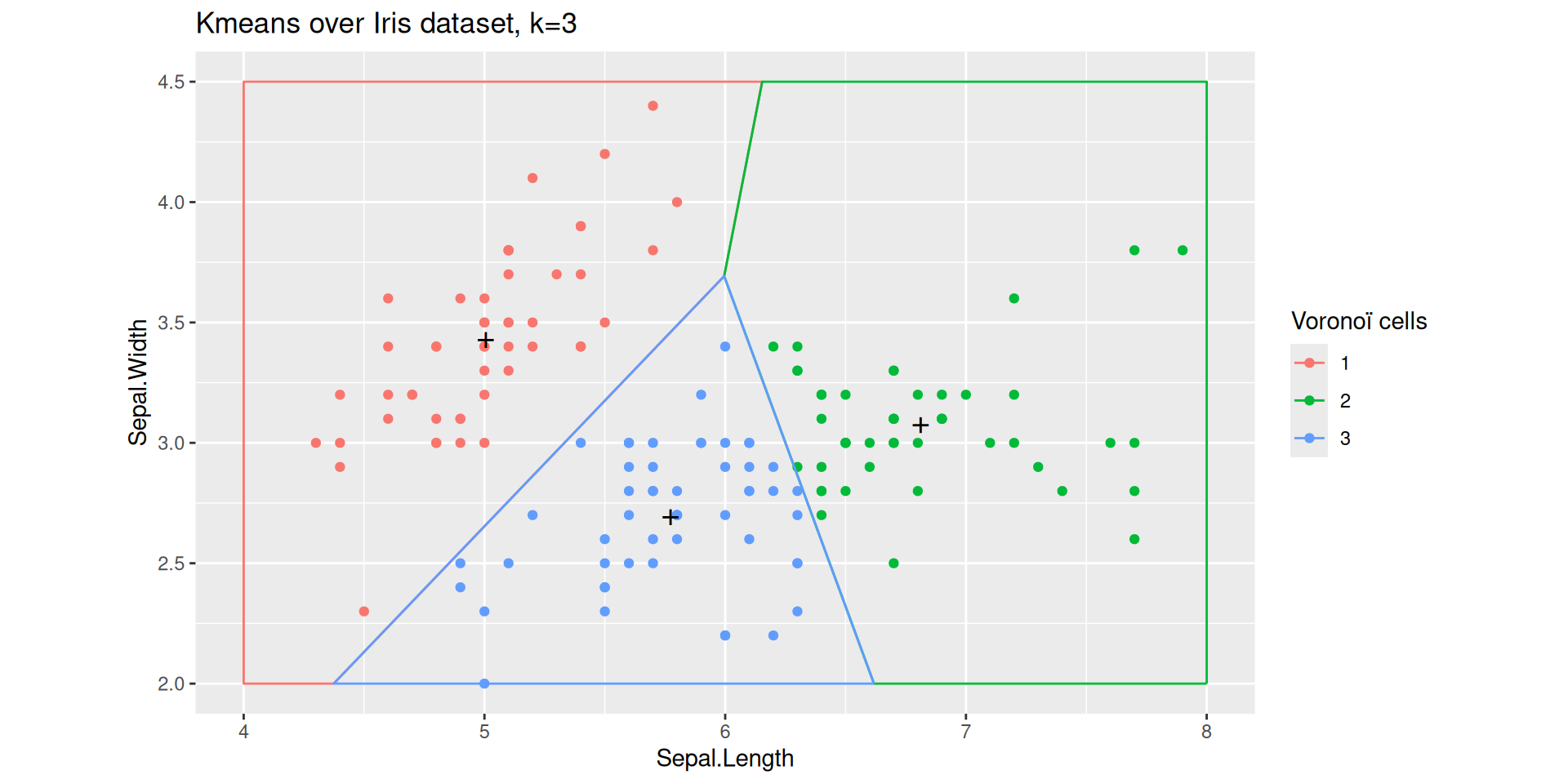

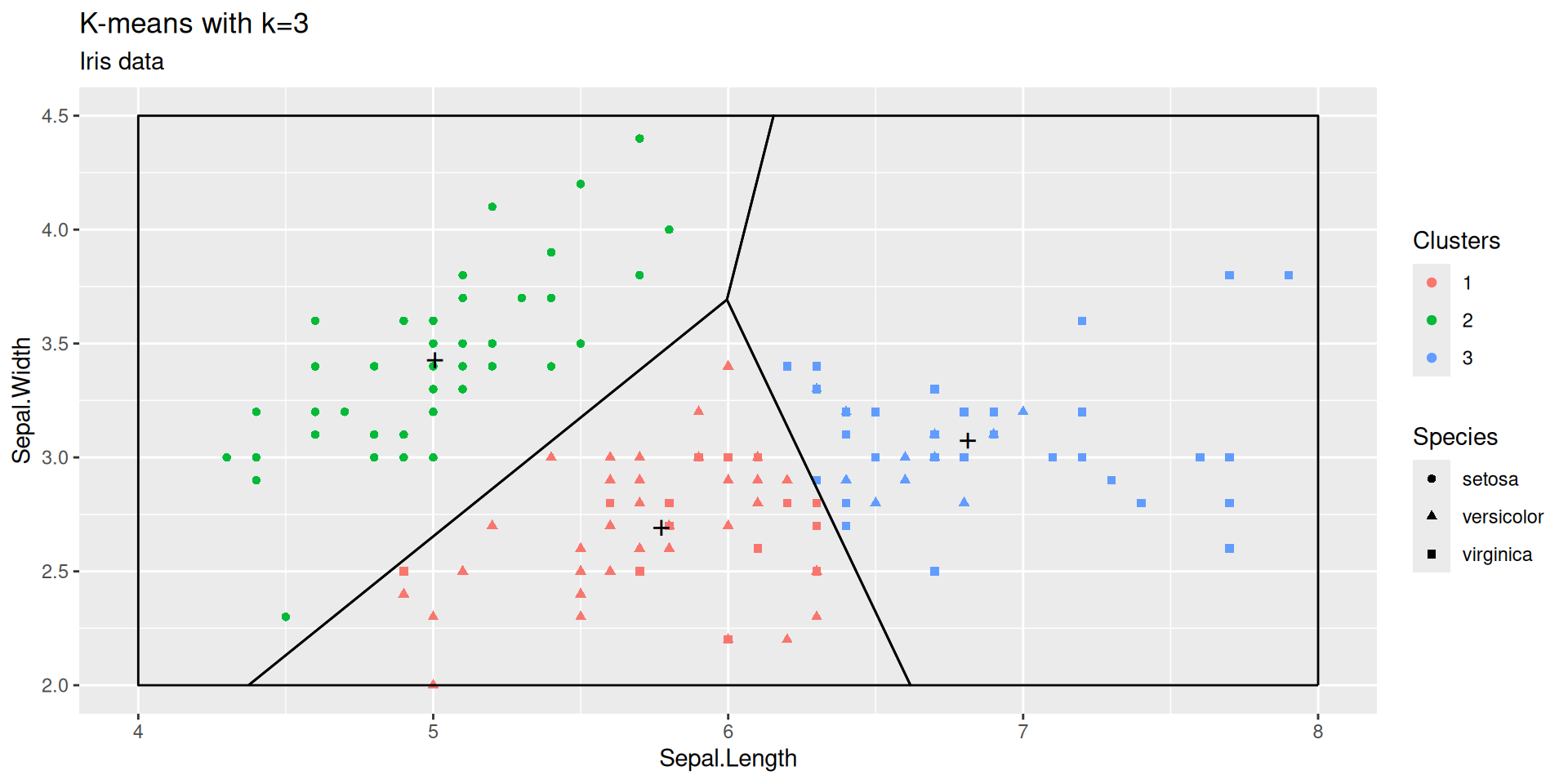

kmeans with \(k=3\) on the Iris dataset

Function kmeans is run with default arguments

We chose the Sepal plane for clustering and visualization

This is arbitrary. We could have chosen a Petal plane, a Width plane, or a plane defined by principal axes.

A \(k\)-means clustering is completely characterized by the \(k\) centroids

Once centroids are known, clusters can be recovered by searching the closest centroid for each sample point (that is by delimiting the Voronoï cells).

  • How can we assess the quality of a \(k\)-means clustering?

  • Can we compare the clusterings achieved by picking different values of \(k\)?

There is no obvious assessment criterion!

The quality of a clustering can be appreciated according to a wide variety of performance indicators

  • Distortion: this is the \(k\)-means cost
  • Shape of clusters
  • Relevance of clusters
  • Stability: does clustering depend on few points?

Caveat

When visualizing \(k\)-means clustering on Iris data, we are cheating.

We have a gold standard classification delivered by botanists

The botanists classification can be challenged

We can compare classification originating from phenotypes (appearance) and classification based on phylogeny (comparing DNAs)

Summarising a \(k\)-means clustering

A clustering can be summarized and illustrated.

In A meaningful summary is provided by the generic function summary(), or a tidy summary is providede by broom::tidy(...)

Sepal.Length Sepal.Width size withinss cluster
6.81 3.07 47.00 12.62 1
5.01 3.43 50.00 13.13 2
5.77 2.69 53.00 11.30 3

The concise summary tells us the number of points that are assigned to each cluster, and the Within Sum of Squares (WNSS). It says something about inner homogeneity and (apparently) nothing about outer homogeneity

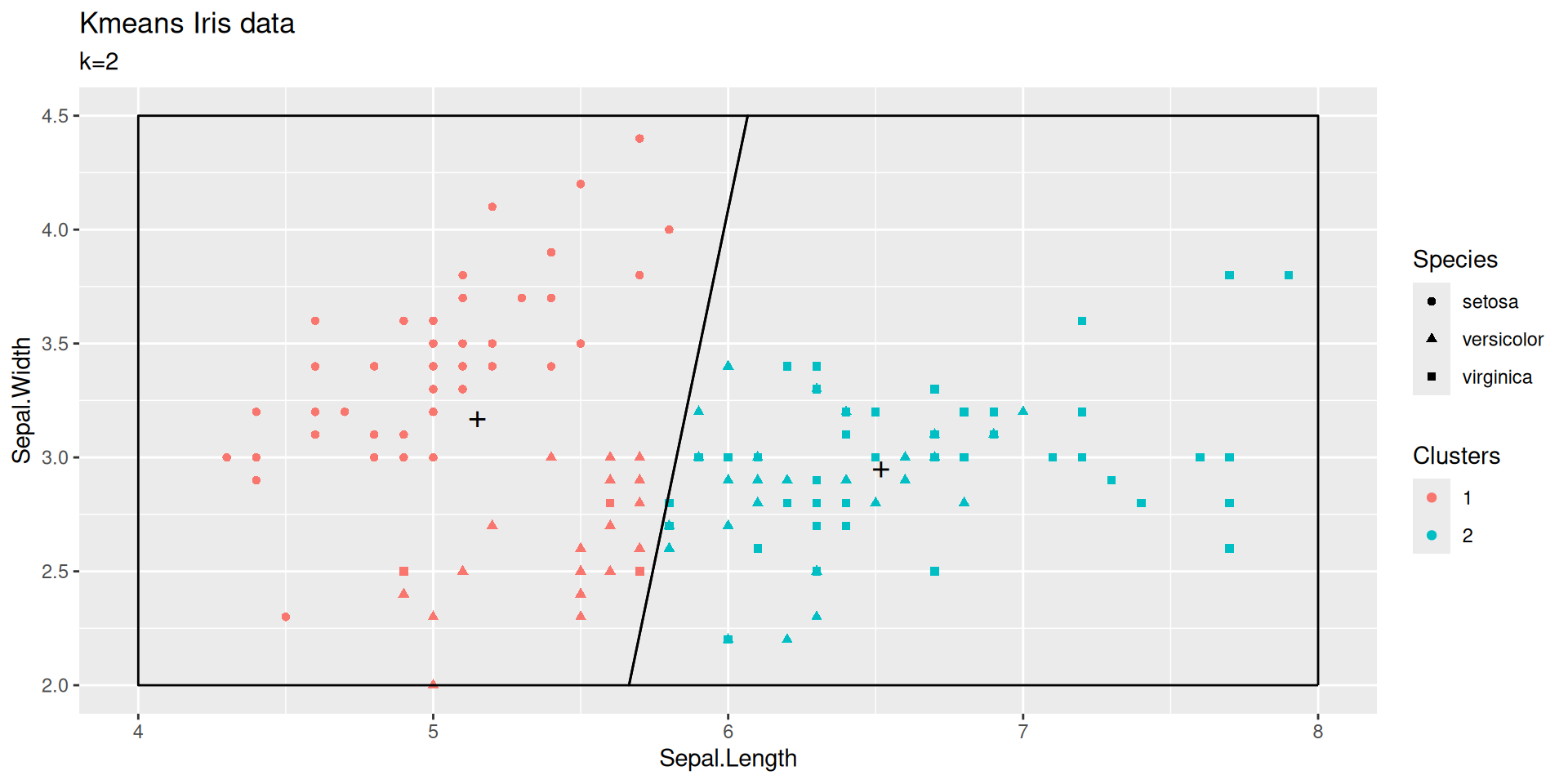

\(k\)-means with \(k=2\)

We pursue the exploration of kmeans by building another clustering for Iris dataset.

This times with \(k=2\).

Sepal.Length Sepal.Width size withinss cluster
5.22 3.13 83.00 35.09 1
6.61 2.97 67.00 23.11 2

How should we pick \(k\)?

Even if we could compute a provably optimal codebook for each \(k\), choosing \(k\) would not be obvious

A common recipe consists of plotting within clusters sum of squares (WNSS) against \(k\)

Within clusters sum of squares (WNSS) decreases sharply between \(k=2\) and \(k=3\)

For larger values of \(k\), the decay is much smaller.

The elbow rule of thumb suggests to choose \(k=3\).

We have run kmeans over the Iris dataset, for \(k\) in range \(2, \ldots, 10\). For each value of \(k\), we performed \(32\) randomized initializations, and chose the partition that minimizes within clusters sum of squares

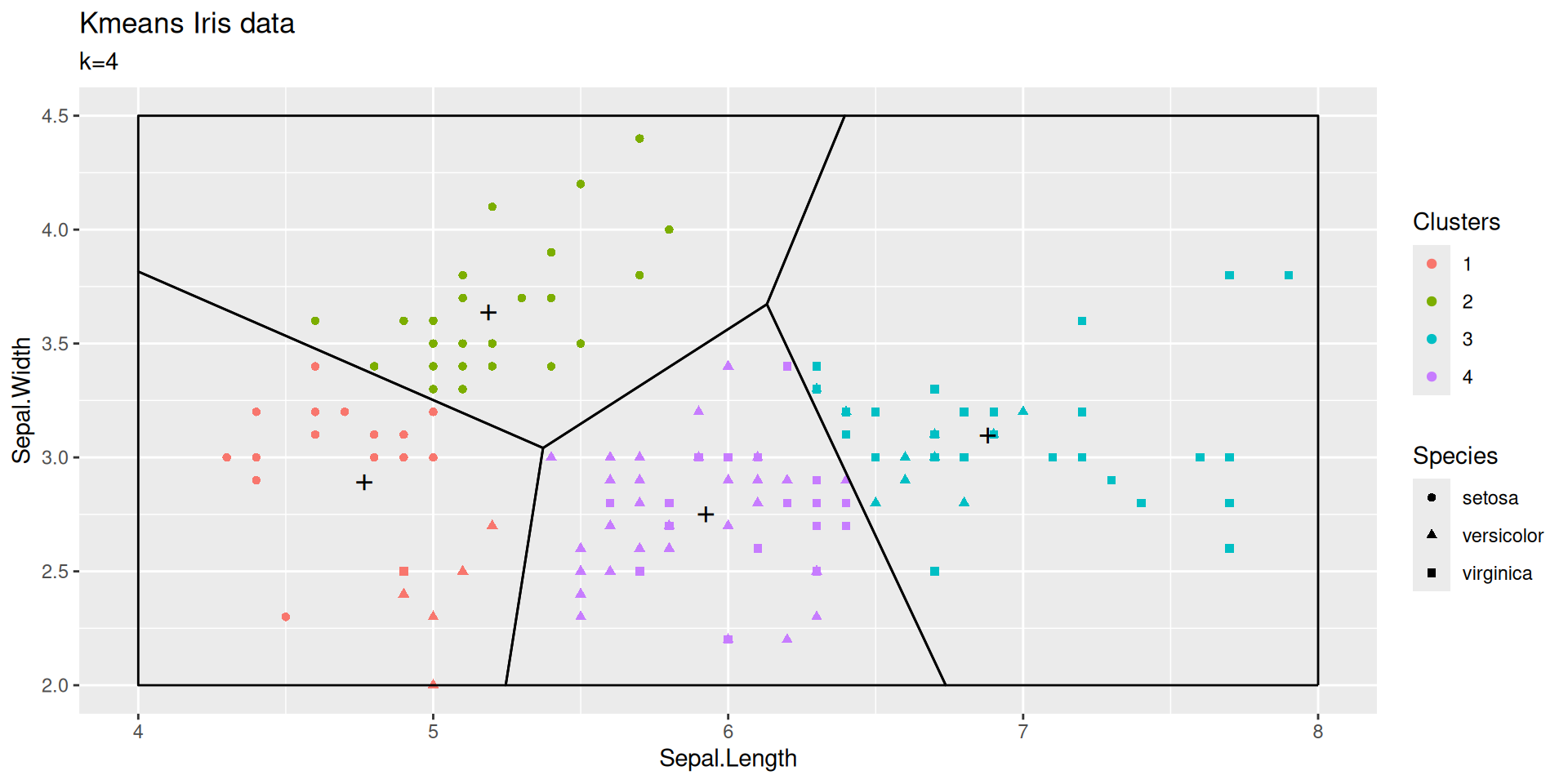

Incentive to choose \(k=4\)?

Depending on initialization, taking \(k=4\) creates a cluster at the boundary between versicolor and virginica or it may split the setosa cluster

Sepal.Length Sepal.Width size withinss cluster
5.518182 2.606061 33 5.967879 1
5.016327 3.451020 49 11.569388 2
7.283333 3.133333 18 3.905000 3
6.350000 2.942000 50 6.786800 4

Initialization matters!

  • Initialize by samples.

  • k-Mean++ try to take them as separated as possible.

  • No guarantee to converge to a global optimum!

  • Trial and error.

  • Repeat and keep the best result.

kmeans(x,       # data
       centers, # initial centroids or number of clusters
       iter.max = 10,
       nstart = 1,  # number of trials
       algorithm = c("Hartigan-Wong", # default
                     "Lloyd",         #<< old one
                     "Forgy",
                     "MacQueen"),
       trace=FALSE)

Lloyd’s Algorithm

Lloyd’s Algorithm (detailed) for fixed k (naive k-means)

  1. Initialize Choose \(k\) centroids

  2. Iterations: Two phases

  3. (Movement) Assign each sample point to the closest centroid Assign each sample point to a class in the Voronoi partition defined by the centroids

  4. (Update) For each class in the current Voronoi partition, update the centroid so as to minimize the Within Cluster Sum of Squared distances.

Lloyd’s iterations

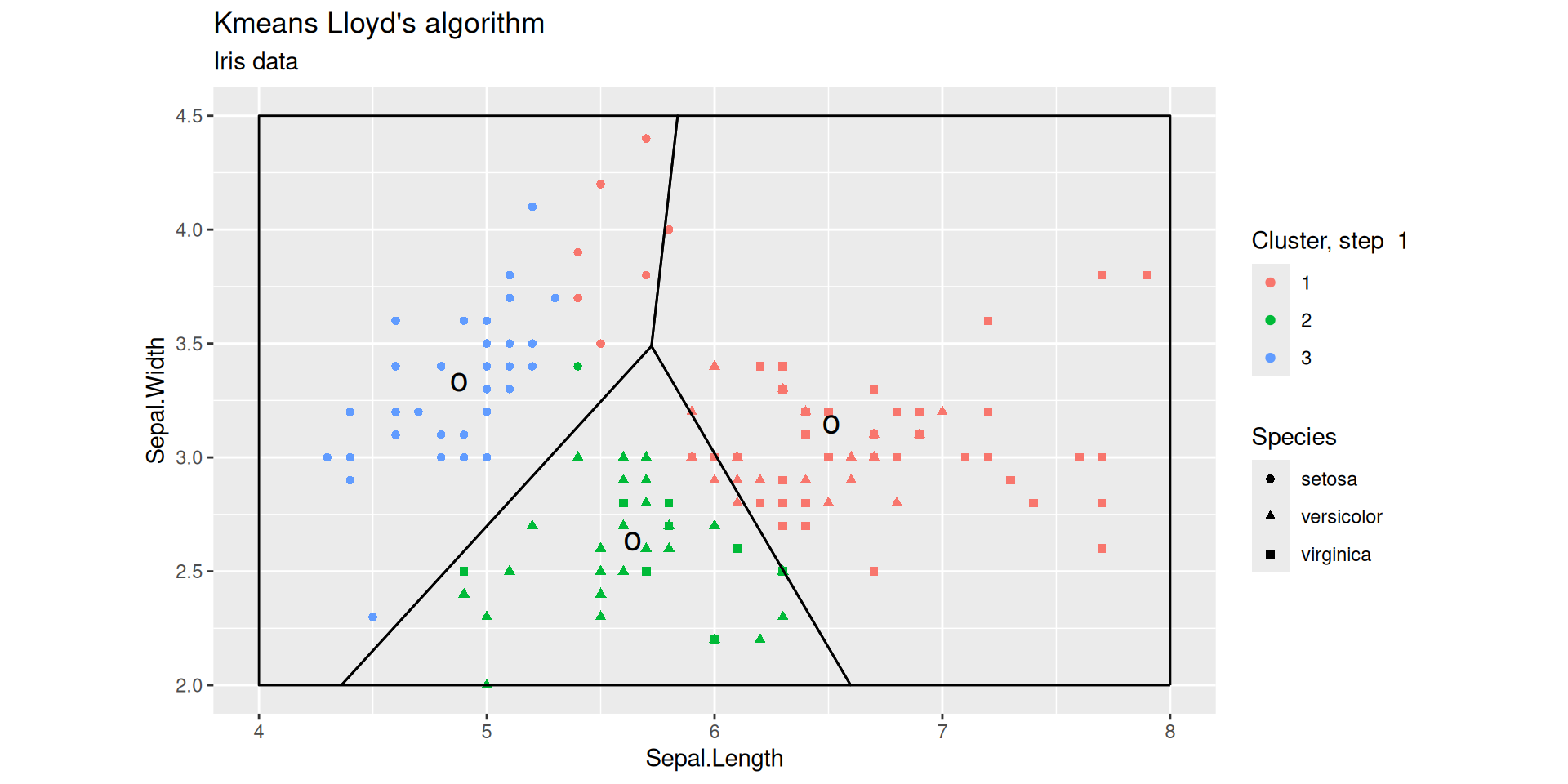

After 1 step

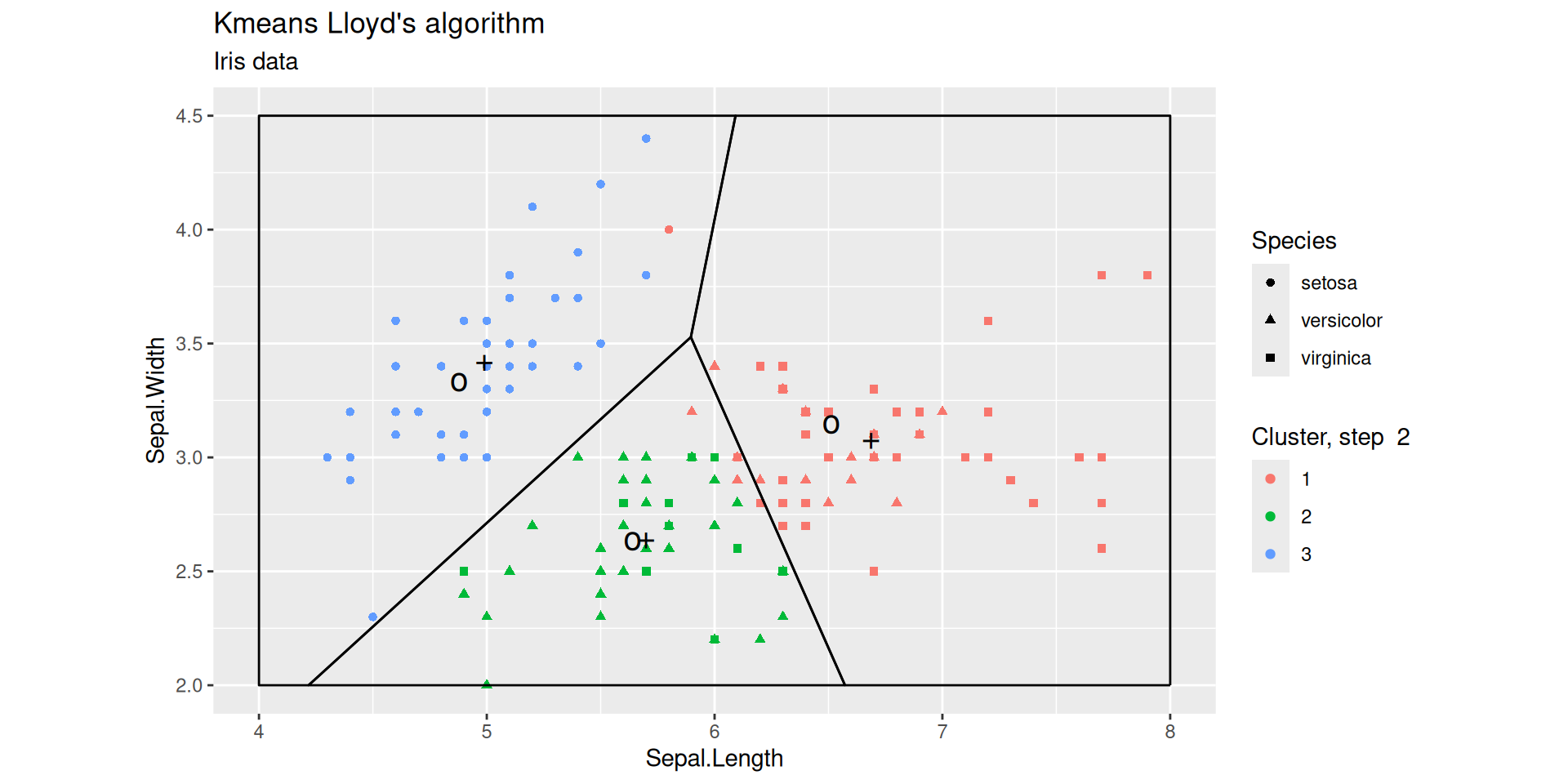

Lloyd’s iterations after 2 steps

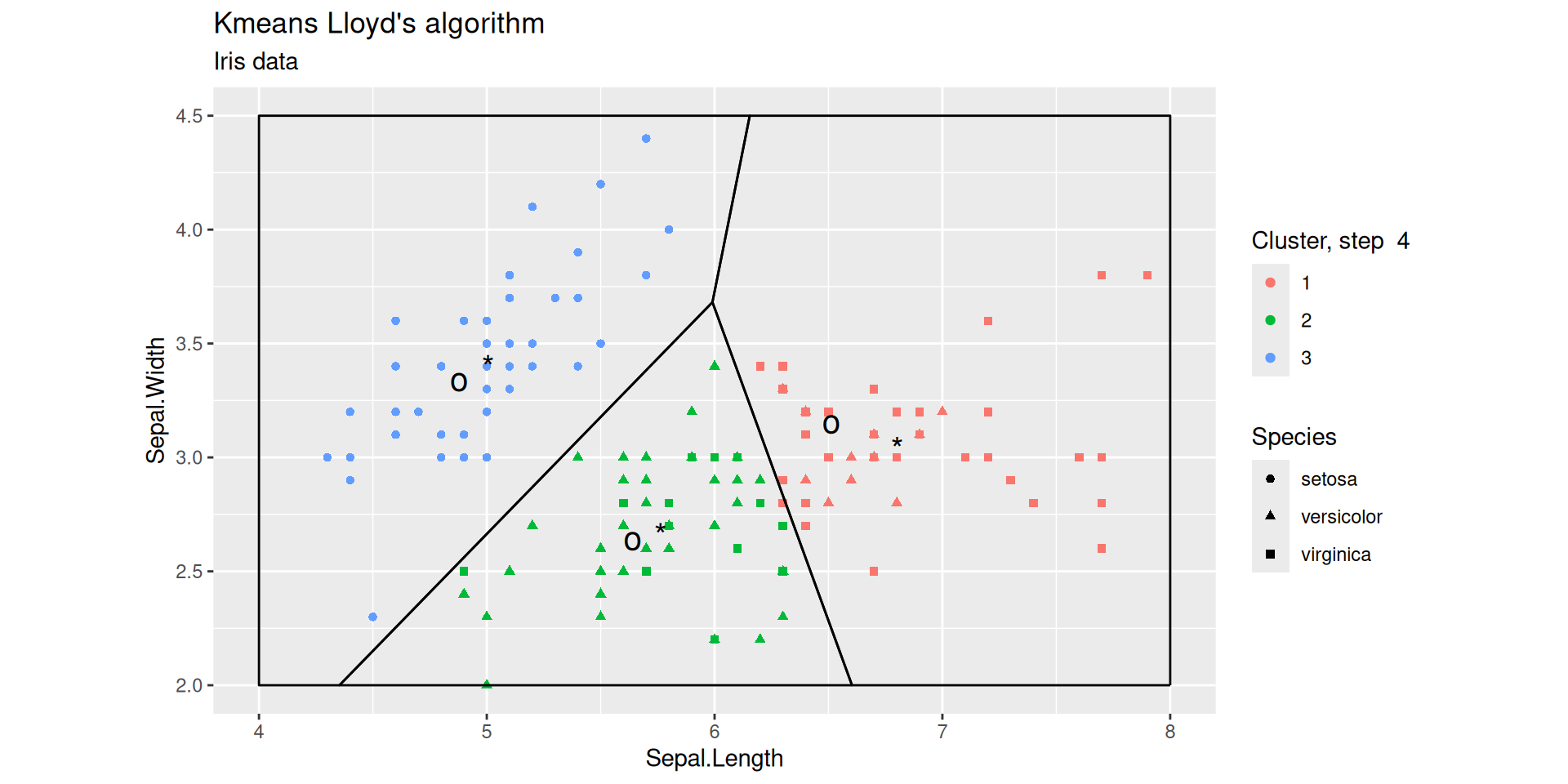

Lloyd’s iterations after 4 steps

Lloyd’s algorithm (analysis)

Analysis

Given

  • codebook \(\mathcal{C} =\big\{c_1, \ldots, c_k\big\}\) and
  • clusters \(C_1, \ldots C_k\),

the within-clusters sum of squares is defined as

\(\sum_{j=1}^k \sum_{i: X_i \in C_j} \bigg\Vert c_j - X_i \bigg\Vert^2\)

This is also the kmeans cost

Lemma

At each stage, the within clusters sums of squares does not increase

Proof

Let \(\mathcal{C}^{(t)} =\big\{ c^{(t)}_1, \ldots, c_k^{(t)}\big\}\) be the codebook after \(t\) steps

Let \(\big({C}^{(t)}_j\big)_{j \leq k}\) be the clusters after \(t\) steps

  • Centroids at step \(t+1\) are the barycenters of clusters \(\big({C}^{(t)}_j\big)_{j \leq k}\)

\(c^{(t+1)}_j = \frac{1}{|C_j^{(t)}|} \sum_{X_i \in C^{(t)}_j} X_i\)

  • Clusters \(C^{(t+1)}_j\) are defined by

\(C^{(t+1)}_j = \bigg\{ X_i : \Vert X_i - c^{(t+1)}_j\Vert = \min_{c \in \mathcal{C}^{(t+1)}} \Vert X_i - c\Vert \bigg\}\)

Each sample point is assigned to the closest centroid

Proof (continued)

\[\sum_{j=1}^k \sum_{X_i \in C^{(t)}_j} \bigg\Vert c^{(t)}_j - X_i\bigg\Vert^2 \geq \sum_{j=1}^k \sum_{X_i \in C^{(t)}_j} \bigg\Vert c^{(t+1)}_j - X_i\bigg\Vert^2\]

since for each \(j\), the mean \(c^{(t+1)}_j\) minimizes the average square distance to points in \(C^{(t)}_j\)

\[\sum_{j=1}^k \sum_{X_i \in C^{(t)}_j} \bigg\Vert c^{(t+1)}_j - X_i\bigg\Vert^2 \geq \sum_{j=1}^k \sum_{X_i \in C^{(t)}_j} \min_{c \in \mathcal{C}^{(t+1)}}\bigg\Vert c - X_i\bigg\Vert^2\]

\[\sum_{j=1}^k \sum_{X_i \in C^{(t)}_j} \min_{c \in \mathcal{C}^{(t+1)}}\bigg\Vert c - X_i\bigg\Vert^2 = \sum_{j=1}^k \sum_{X_i \in C^{(t+1)}_j} \bigg\Vert c^{(t+1)}_j - X_i\bigg\Vert^2\]

Variants of k-means

Implementations of \(k\)-means vary with respect to

  • Initialization
    • k-means++
    • Forgy : pick initial centroids at random from the dataset
    • Random partition : pick a random partition of the dataset and initialize centroids by computing means in each class
    • …
  • Movement/assignment
    • Naive \(k\) means uses brute-force search for closest centroid. Each step requires \(\Omega(n \times k)\) operations
    • Elkan (used by scikit-learn)
    • Hartigan-Wong default
    • …

Combining PCA and \(k\)-means

The result of a clustering procedure like kmeans can be visualized by projecting the dataset on a pair of native variables and using some aesthetics to emphasize the clusters

This is not always the best way.

First choosing a pair of native variables may not be straightforward. The projected pairwise distances may not faithfully reflect the pairwise distances that serve for clustering.

It makes sense to project the dataset of the \(2\)-dimensional subspace that maximizes the projected inertia, that is on the space generated by the first two principal components

PCA, projection, \(k\)-means

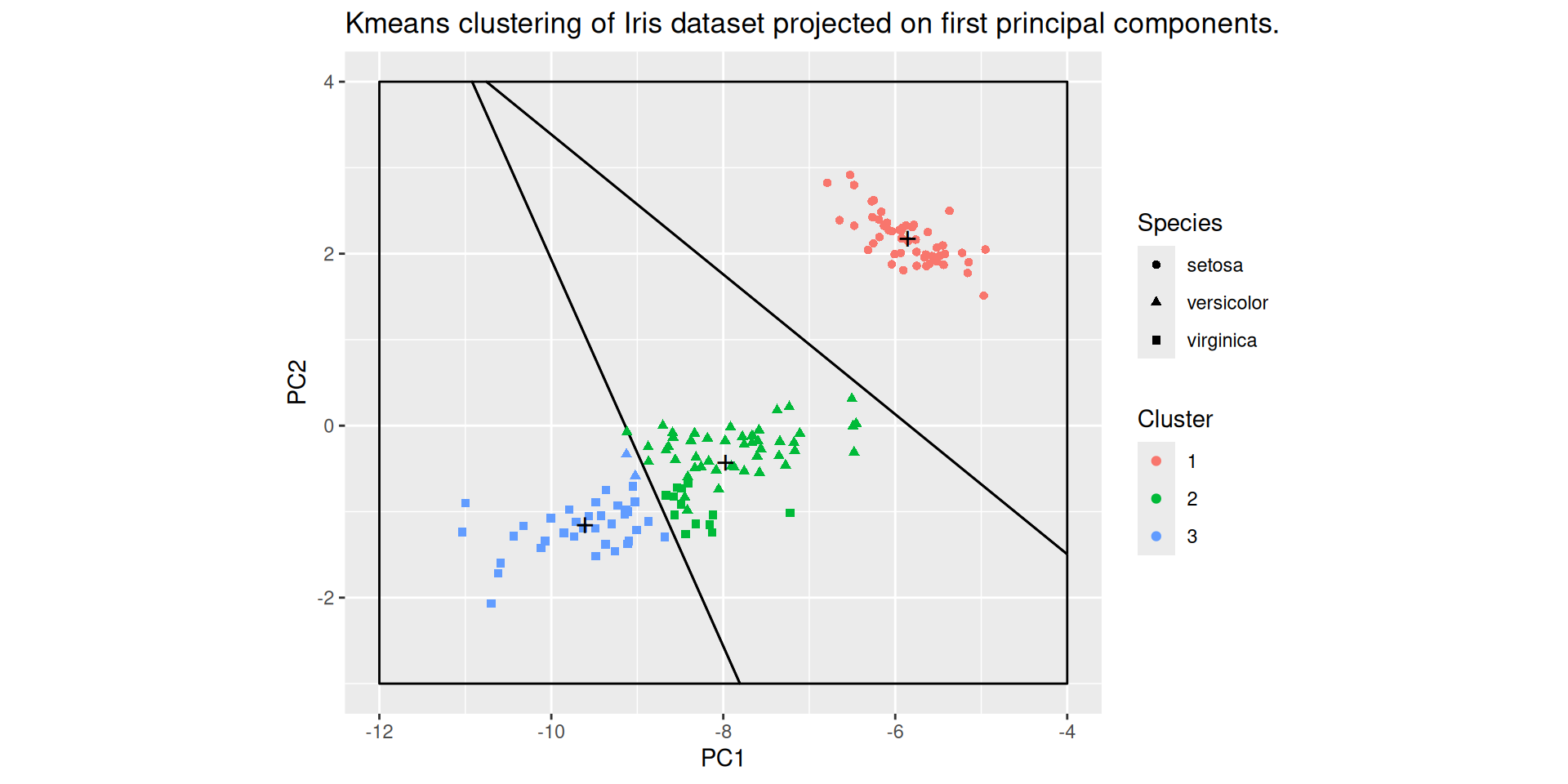

The kmeans clustering of the Iris dataset is projected on the first two principal components: prcomp is used to perform PCA with neither centering nor scaling

kmeans is applied to the rotated data

The straight lines are the not the projections of the boundaries of the (4-dimensional) Voronoï cells defined by the clusters centroids, but the boundaries of the 2-dimensional Voronoï celles defined by the projections of the cluster centroids

Questions around k-means

  • Choosing \(k\)

  • Assessing clustering quality

  • Scaling or not scaling ?

  • Choosing a distance

  • Initialization methods

  • Movement/assignment update

  • Stopping rules

Conclusion

  • Euclidean distance is used as a metric and inertia is used as a measure of cluster scatter

  • The number of clusters \(k\) is an input parameter

  • Convergence to a local minimum may produce counterintuitive (“wrong”) results

The End

Clustering and k-means
